TUBOMATIC N120 ES

Home» TUBOMATIC N120 ES

TUBOMATIC N120 ES

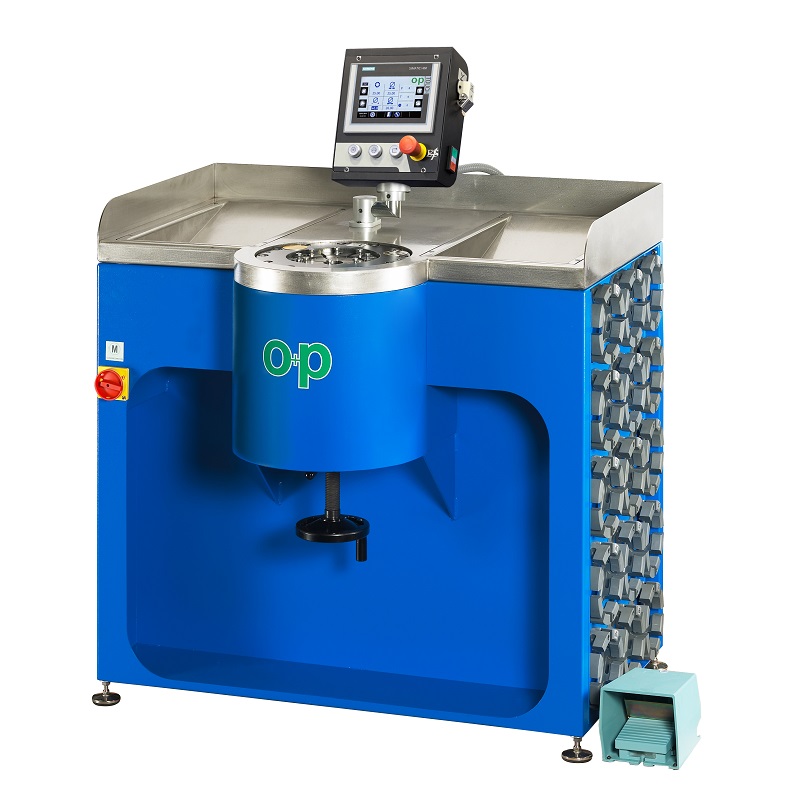

Tubomatic N120 ES is a particularly quick and high volume crimper, ideal for crimping nuts for flexible hose fittings, it can also be used for further applications such as high/low pressure cables and hoses up to a diameter of 120 mm.

MAIN FEATURES:
- ES4 Siemens PLC control with 7'' colour touch-screen display;
- silent pump;
- vertical working position.Product specifications could be modified without prior notice.

  • CRIMPING FORCE80 TON (90 US TONS)
  • MAXIMUM DIAMETER120 mm* (4.7'')
  • CRIMPING/HOUR2500
  • DIE OPENINGØ + 24 mm (Ø + 0.9'')
  • STANDARD VOLTAGE375V-420V 50HZ 3PH
  • MOTOR POWER4 Kw (5.5 Hp)
  • CLOSING SPEED8,5 mm/sec
  • OPENING SPEED92,5 mm/sec
  • WEIGHT WITHOUT OIL455 Kg (1003 (Lbs)
  • OIL (NOT INCLUDED)65 Lt.
  • MAINTENANCE COUNTER FOR PERIODIC SERVICE NOTIFICATIONincl.
  • ELECTRONIC TOUCH SCREEN CONTROLincl.
  • CRIMPING THROUGH PRESSURE CONTROLincl.
OPTIONAL
  • CAMERAOPTIONAL
  • SPECIAL VOLTAGEOPTIONAL
  • MULTISTEP CRIMPING DIAMETERSOPTIONAL
  • ELECTRIC PEDALOPTIONAL
  • SPECIAL DIESOPTIONAL
  • CRIMPING SPEED CONTROL SYSTEMOPTIONAL
  • BARCODE READEROPTIONAL
  • AUTOMATIC LUBRICATION SYSTEMOPTIONAL
